Rugged Military Switch Series

19”/2® ESW400 Series

The ESW400 series is announced End-of-Life and last date to order is set to 24 August 2023

EOL Document

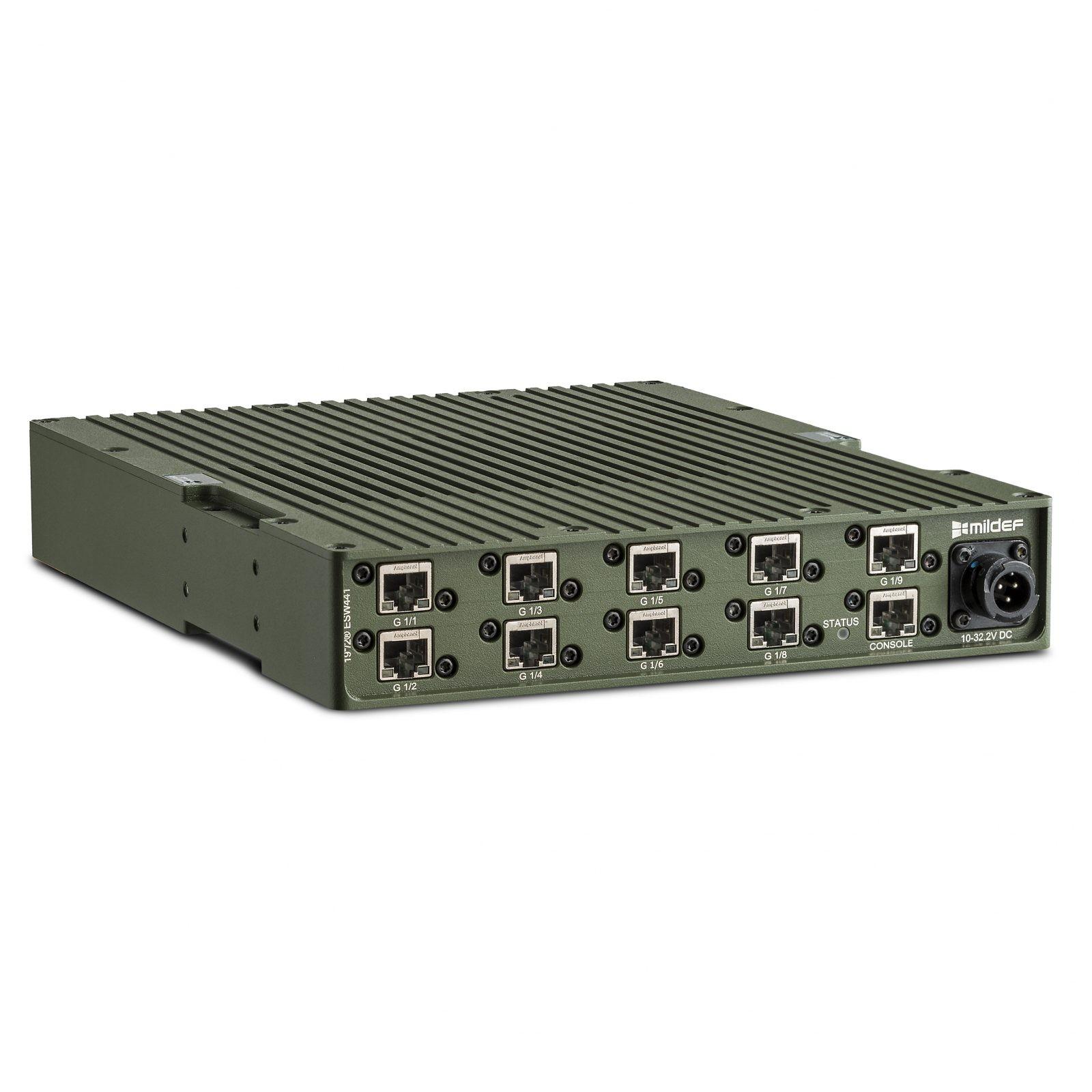

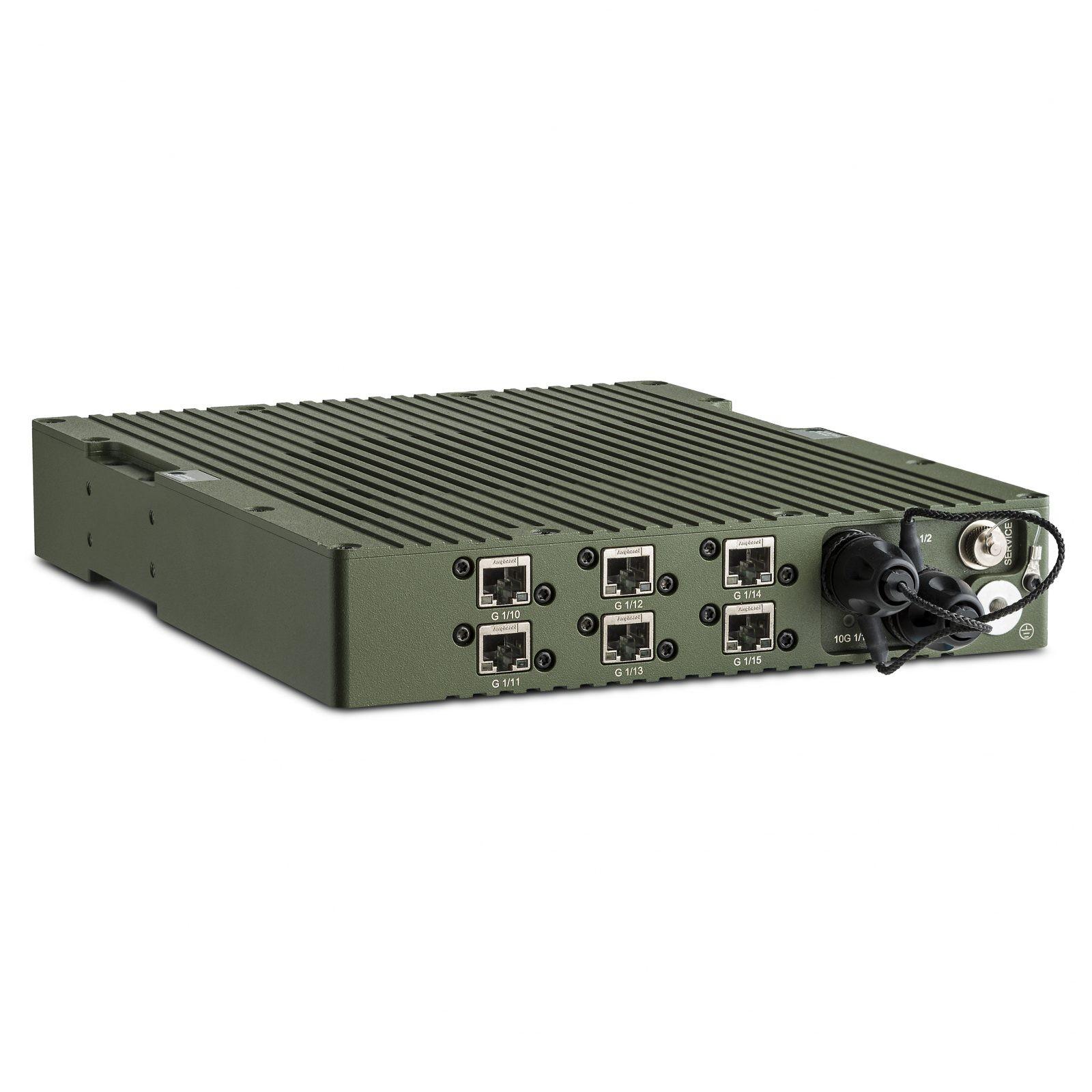

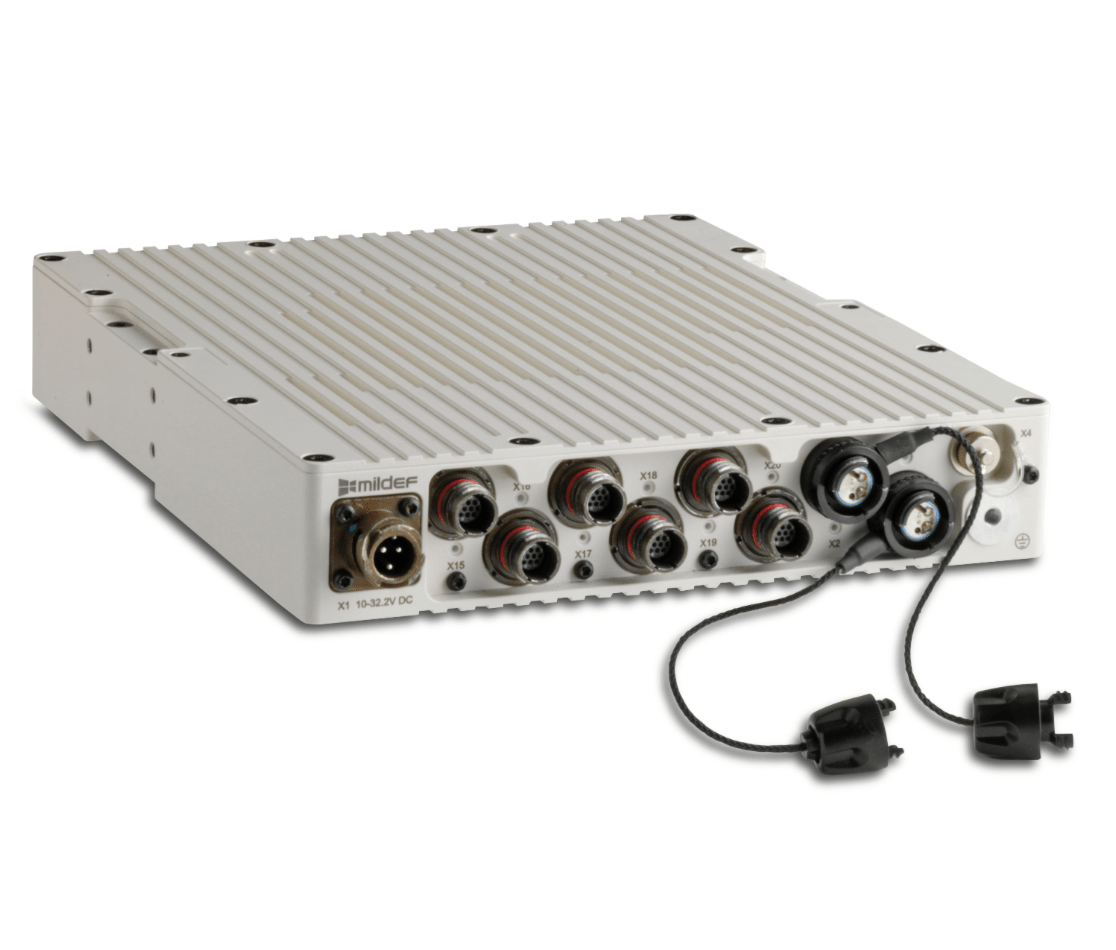

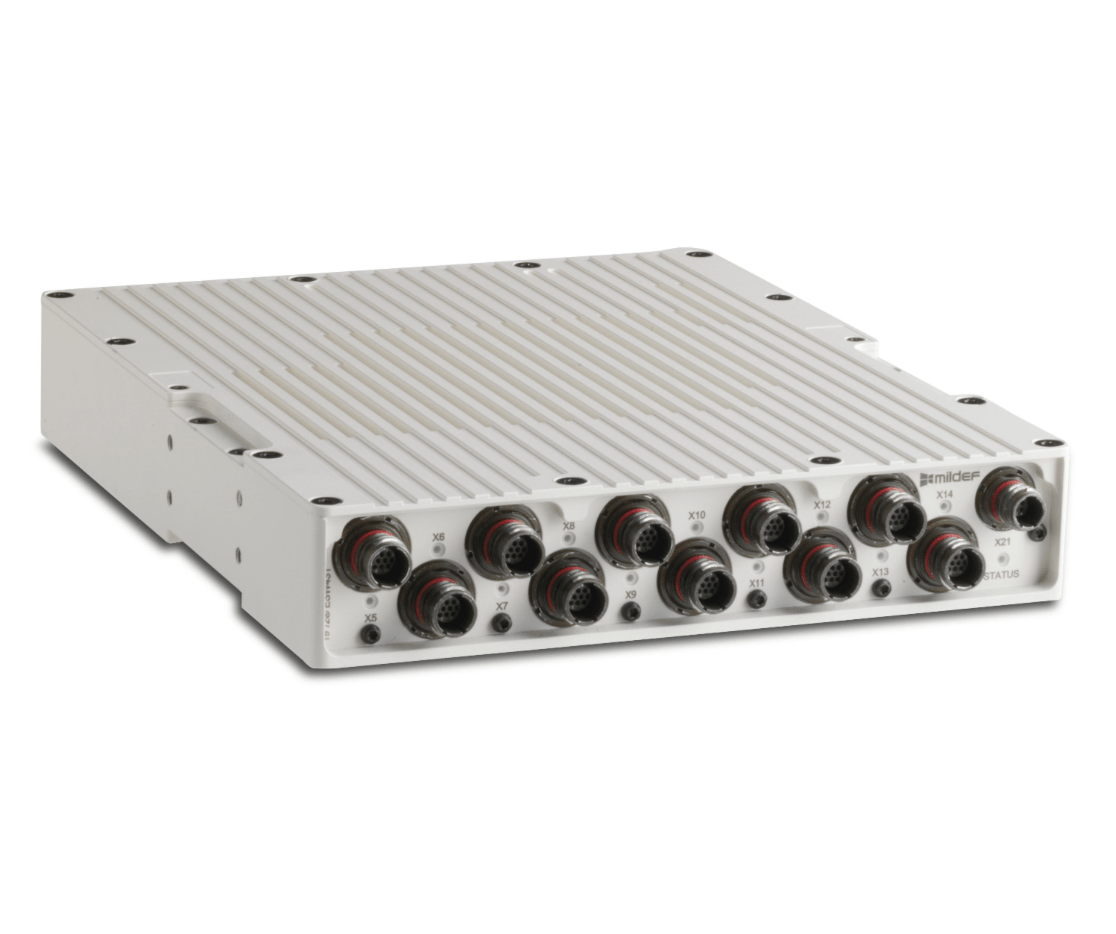

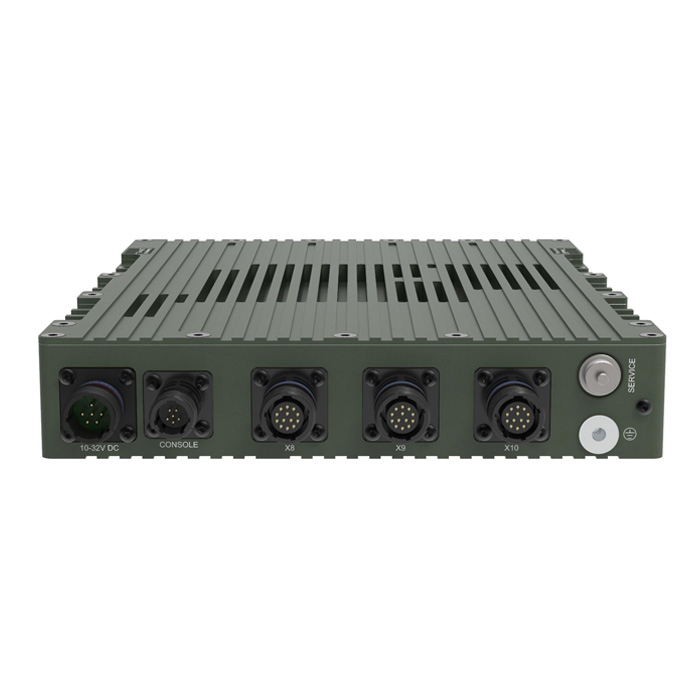

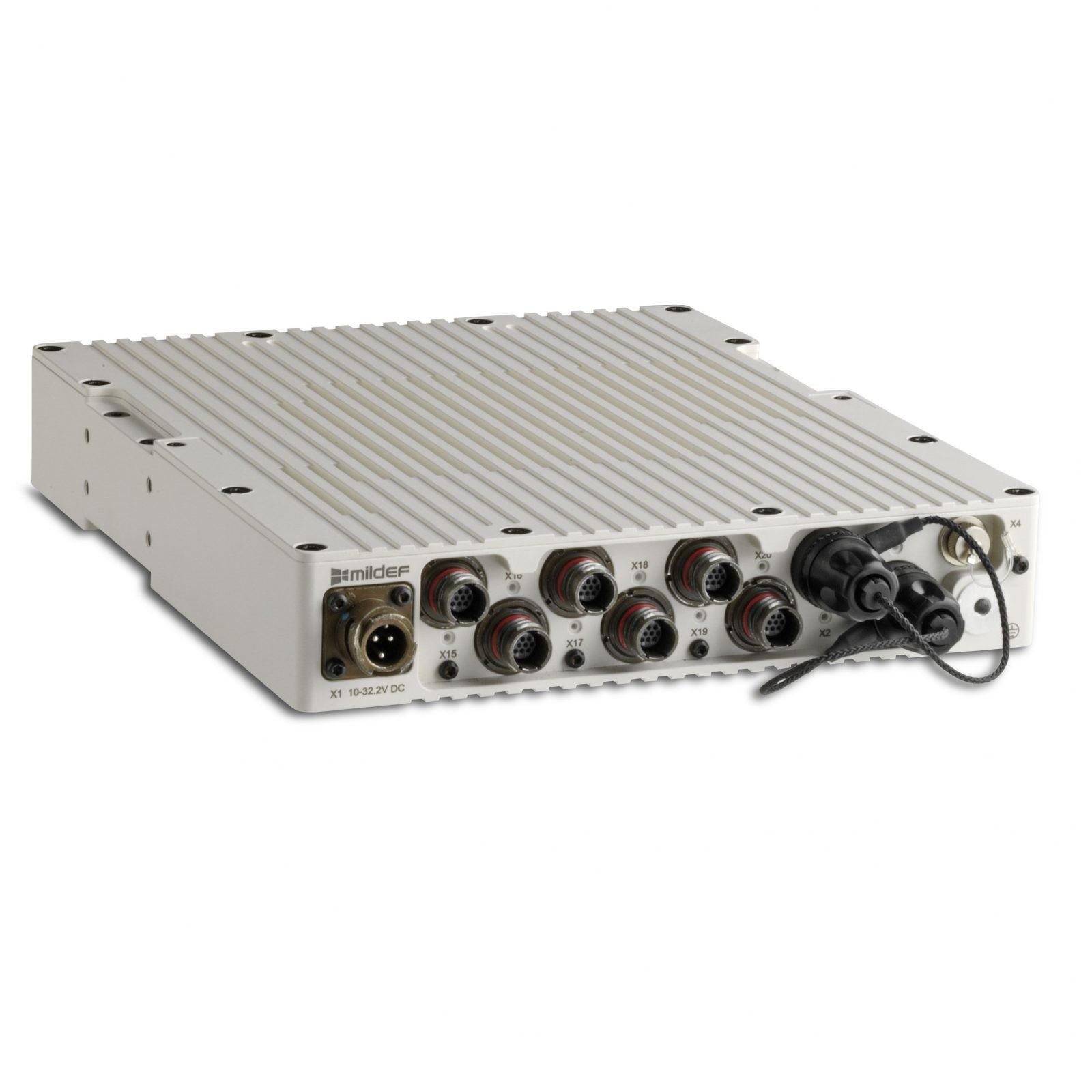

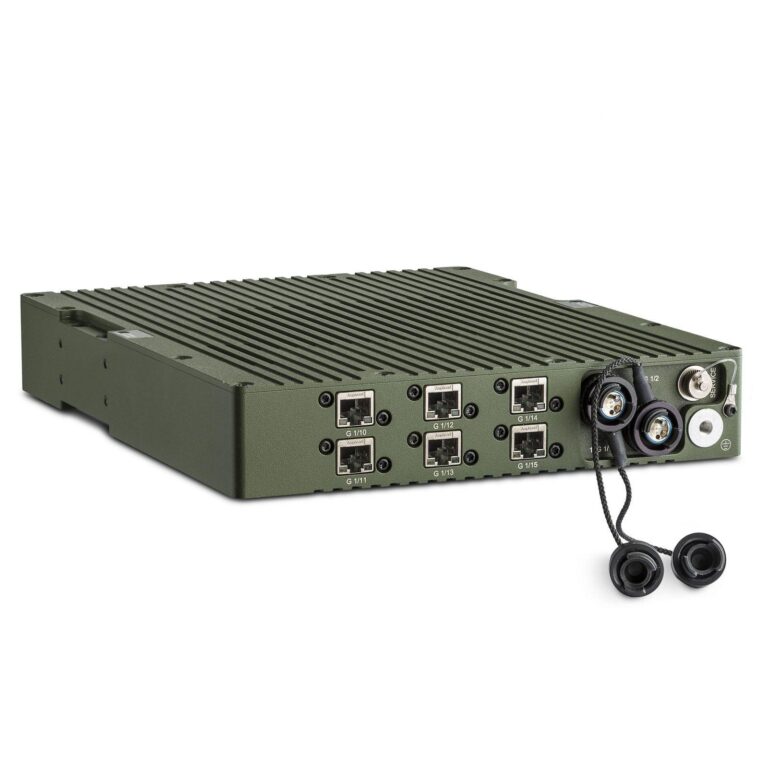

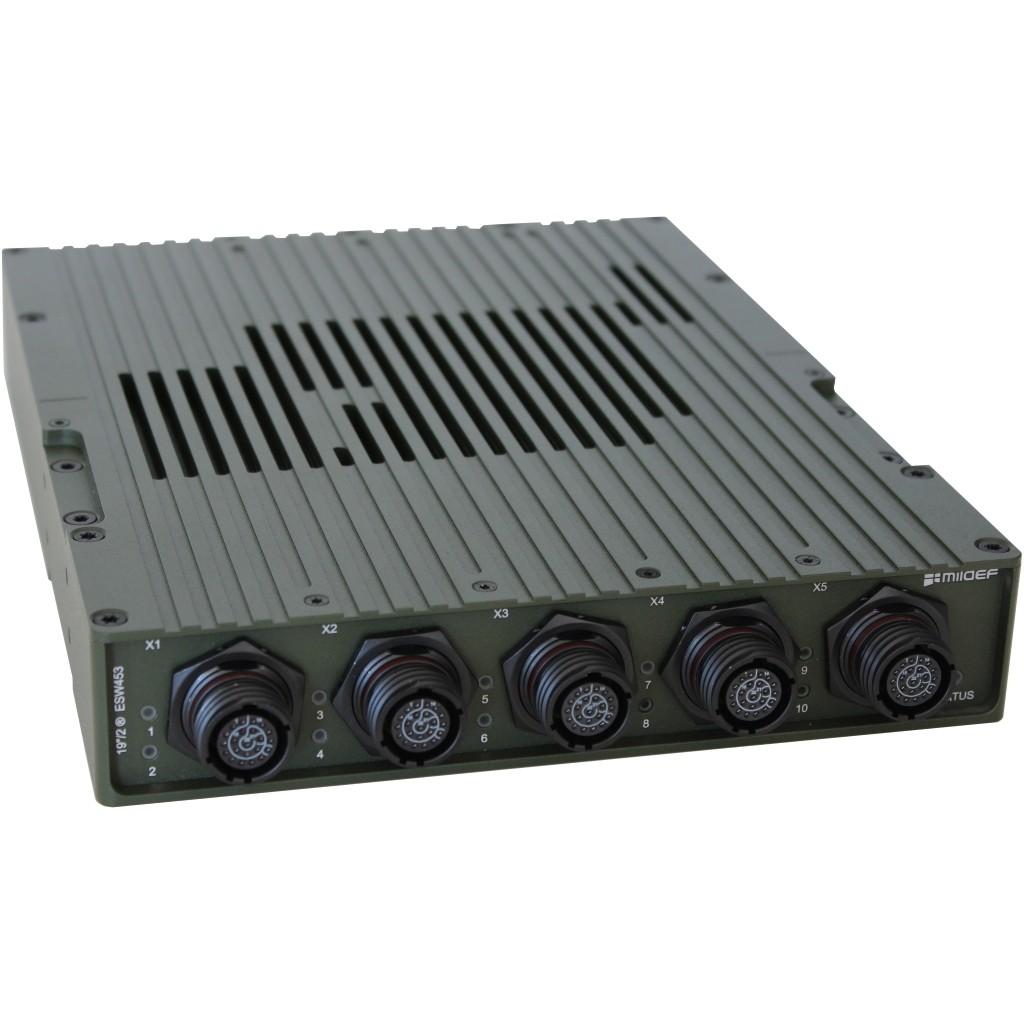

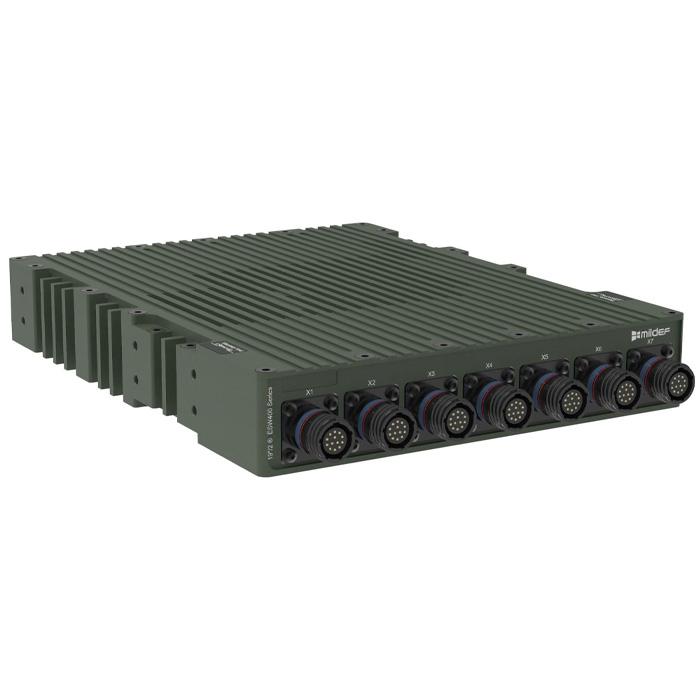

The 19”/2® Switch ESW400Series is a powerful managed switch support up to two 1 or 10 Gbps fiber uplinks and up to sixteen 1 Gbps access ports.

An ideal solution for demanding high speed networks, including data, video, and voice services. It supports both layer 2 and layer 3 functionality and can be implemented anywhere high speed LAN and WAN connectivity may be required.

Built to take a beating
The switch is built from the ground up to withstand the harshest conditions over the long haul. It has an Aluminium casing and it runs on ruggedized hardware which makes it suitable for harsh environments. It is a sealed unit that requires no active cooling and provides interfaces over military-grade circular connectors. The unit features a military-grade power supply supporting ground/marine (MIL-STD-1275D) vehicle voltage input. On top of this toughness, we offer lifetime support to ensure that the switch maintains its performance for many years to come.

All 19”/2 units can be mounted together in several different  ways:
–       One 19”/2 unit can be mounted in a 19” rack
–       Two 19”/2 units can be mounted together in a 19” rack
–       Two or more devices can also be stacked on top of each other

Contact us about this product/products

    Ask our team a question

    Description18-port switch17-port switch17-port switch16-port switch14-port switch16-port switch8-port switch10-port switch16-port switch
    Connector TypeMighty MouseIndustrialIndustrialIndustrial3899938999389993899938999
    CustomerCustomer ProjectStandard ProductStandard ProductStandard ProductCustomer ProjectStandard ProductCustomer projectCustomer projectCustomer project
    Layer 2VLAN, QoS, RSTP etcVLAN, QoS, RSTP etcVLAN, QoS, RSTP etcVLAN, QoS, RSTP etcVLAN, QoS, RSTP etcVLAN, QoS, RSTP etcVLAN, QoS, RSTP etc.VLAN, QoS, RSTP etc.VLAN, QoS, RSTP etc.
    RoutingYes (static)Yes (static)Yes (static)Yes (static)Yes (static)Yes (static)Yes (static)Yes (static)Yes (static)
    ManagementCLI & WebCLI & WebCLI & WebCLI & WebCLI & WebCLI & WebCLI & WebCLI & WebCLI & Web
    Ethernet (copper)16x 1000Base-T15x 1000Base-T15x 1000Base-T16x 1000Base-T12x 1000Base-T16x 1000Base-T8x 1000Base-T10x 1000Base-T16x 1000Base-T
    Ethernet (fiber)2x 10GBase-LR2x 10GBase-LR2x 1000Base-LX-2x 10GBASE-LR----
    Power10-32V DC10-32V DC10-32V DC10-32V DC10-32V DC10-32V DC10-32V DC10-32V DC10-32V DC
    Power connectorITSITSITSITS38999ITS389993899938999
