GNSS: Change NMEA version to 4.10 on ALGIZ 10XR

To change the NMEA version to 4.10, follow the steps below.

  1. Open u-center.

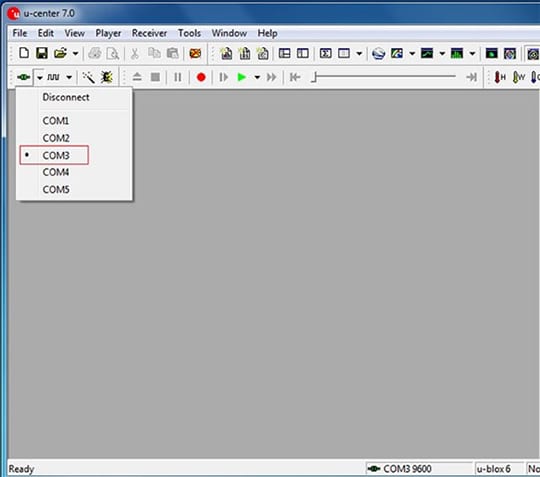

  2. Connect to GPS module (default port is COM3, baudrate 9600):
  3. Go to View > Configuration View.
  4. Click NMEA (NMEA Protocol) on the left side list.

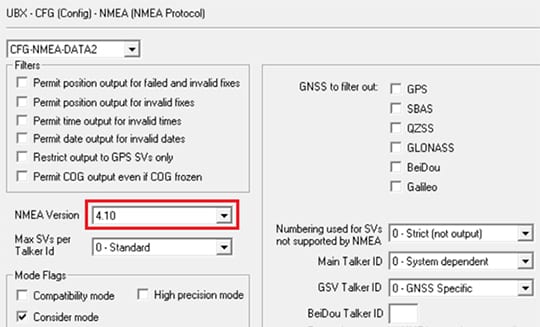

  5. At NMEA Version select the entry 4.10:
  6. Click the Send button in the lower-left corner:

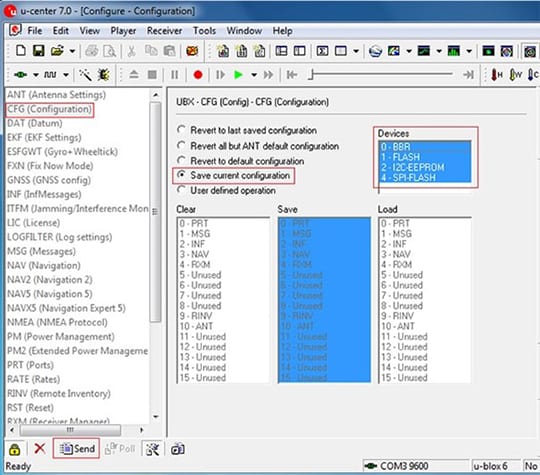

  7. Switch to CFG (configuration) tab in left side list and select Save current configuration. At Devices: select all 4 list entries. (To select all entries, tap and hold pen/mouse on first entry and move down to last entry. Release pen/mouse). Then click the Send button in the lower-left corner:

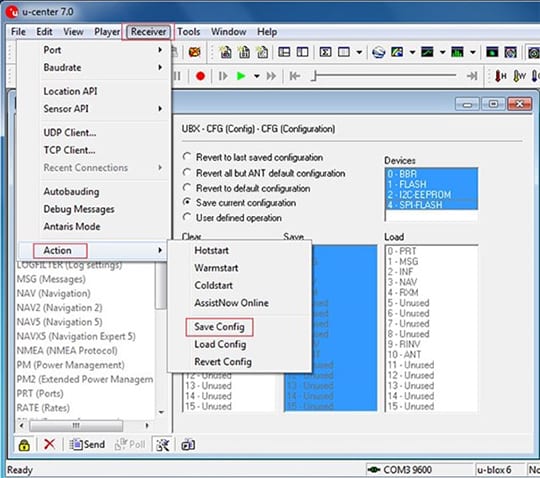

  8. Click Receiver > Action > Save Config:

  9. Close u-center.
